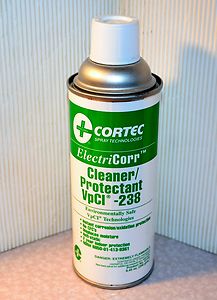

VpCI®-238
Description
ElectriCorr VpCI-238 is an electronic cleaner containing Vapor phase Corrosion Inhibitor(VpCI). This cleaner is specifically formulated for electrical/electronic equipment, and components.ElectriCorr VpCI-238 forms a thin film of Vapor phase Corrosion Inhibitors effective against aggressive environments including industrial, marine, and tropical climates. This film does not alter the electrical resistance or magnetic properties of metal substrates. ElectriCorr VpCI-238 can be safely applied to protect circuits or relays without causing any changes in conductivity. It can be safely used with most plastics, elastomers, and other nonmetallics.
ElectriCorr VpCI-238 is an effective inhibitor of galvanic corrosion for most metals and alloys normally found in electronics applications, such as aluminum, copper, ferrous, and other non-ferrous metals. ElectriCorr VpCI-238 is free of CFCs and 1,1,1-Trichlorethane. Application provides instant corrosion protection. In cases where severe corrosion may occur, ElectriCorr VpCI-238 can be used along with VpCI-100 series impregnated foam devices for extended protection.
Features
• Instant corrosion protection
• Long-term multi-metal protection
• Minimized field service
• Increased corrosion protection at a lower cost than conventional rust preventatives
• CFC- and 1,1,1-Trichlorethane-free
• Vapor phase protection in vented or unvented enclosures
• May be used as a cleaning agent
• Moisture-displacing and penetrating film characteristics
• NSN #6850-01-413-9361(aerosol form)
Typical Applications
• Printed circuit boards
• Electrical contacts and components
• Electric motors
• Corrosion protection of different metals in humid environment
• Generators and junction boxes
• Spray for use after final assembly or in the field
Application
Dip part to be cleaned in VpCI-238 or spray with ElectriCorr VpCI-238. Remove excess by drip, wipe, or other conventional method. Dry time is approximately 1-2 hours at 70F and 50% relative humidity. Forced air is not recommended due to possible condensate and/or compressor oil contamination.
The amount of ElectriCorr VpCI-238 necessary to maintain a sufficient concentration of vapors will depend on factors such as the efficiency of sealing enclosures(air circulation), volume of the enclosure, atmospheric conditions, and the density/porousness of the walls.
Application is effective for 6+ months with proper controls.
Packaging & Storage
ElectriCorr VpCI-238 is available in 5 gallon (19 liter) pails, 55 gallon (208 liter) drums, liquid totes, and bulk. ElectriCorr VpCI-238 is also available in aerosol form, packaged in cartons of six 9.45 oz (267.75 gram) cans. ElectriCorr VpCI-238 should be kept from high temperatures and in normal warehouse conditions to prevent from freezing.ElectriCorr VpCI-238 has a shelflife of 3+ years in sealed packages.
